Renault Multi-Adapter-Ladegerät für 1-phasige und 3-phasige 32A- und 16A-CEE-Steckdosen und 230V-Haushaltssteckdosen

Charge All Models Of The Type 2 Socket Renault With Multiple Power Sockets

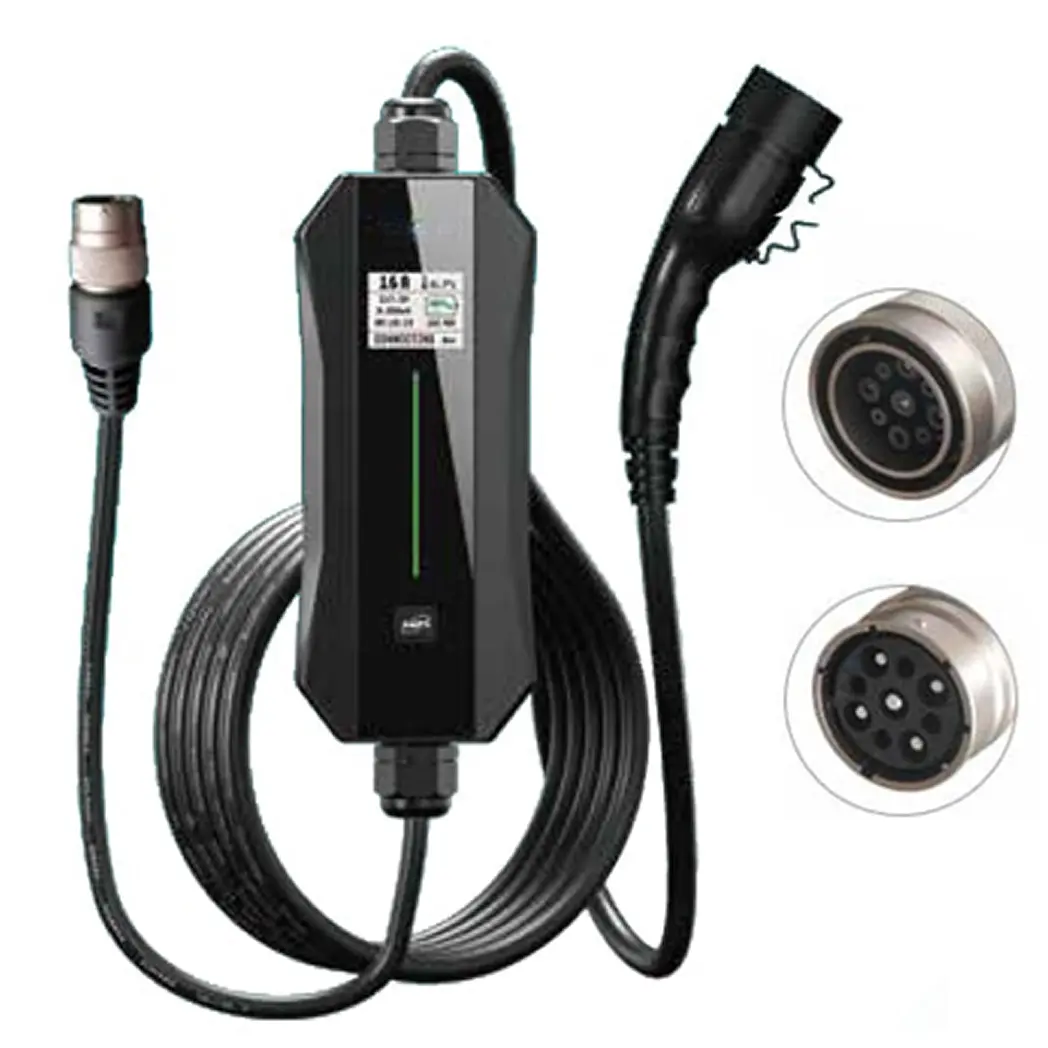

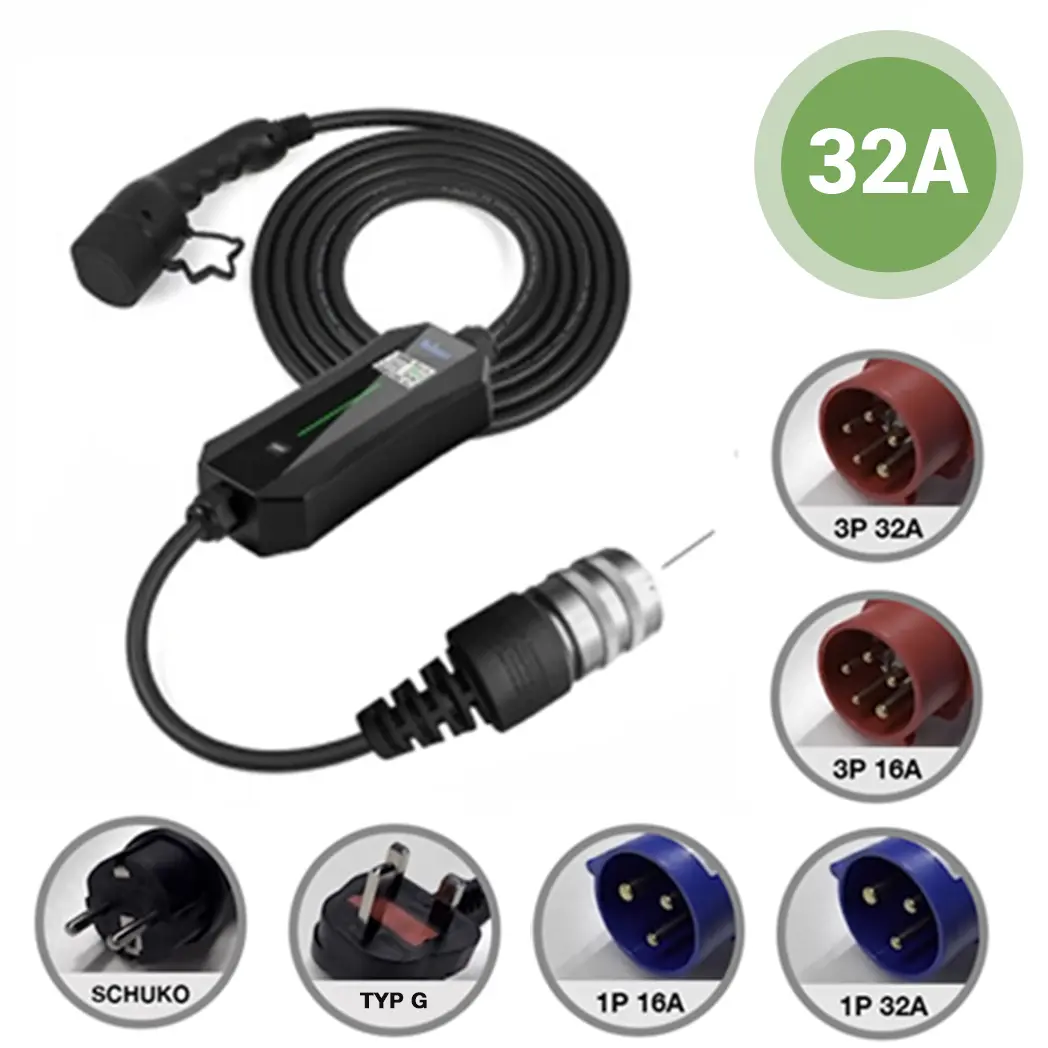

The multi adapter EV charger can connect to 1 Phase and 3 Phase sockets, thus allowing a maximum current of up to 22kW. The adapters that are available to buy for this charger will allow one device to charge the Type 2 socket Renault with the following power outlets:

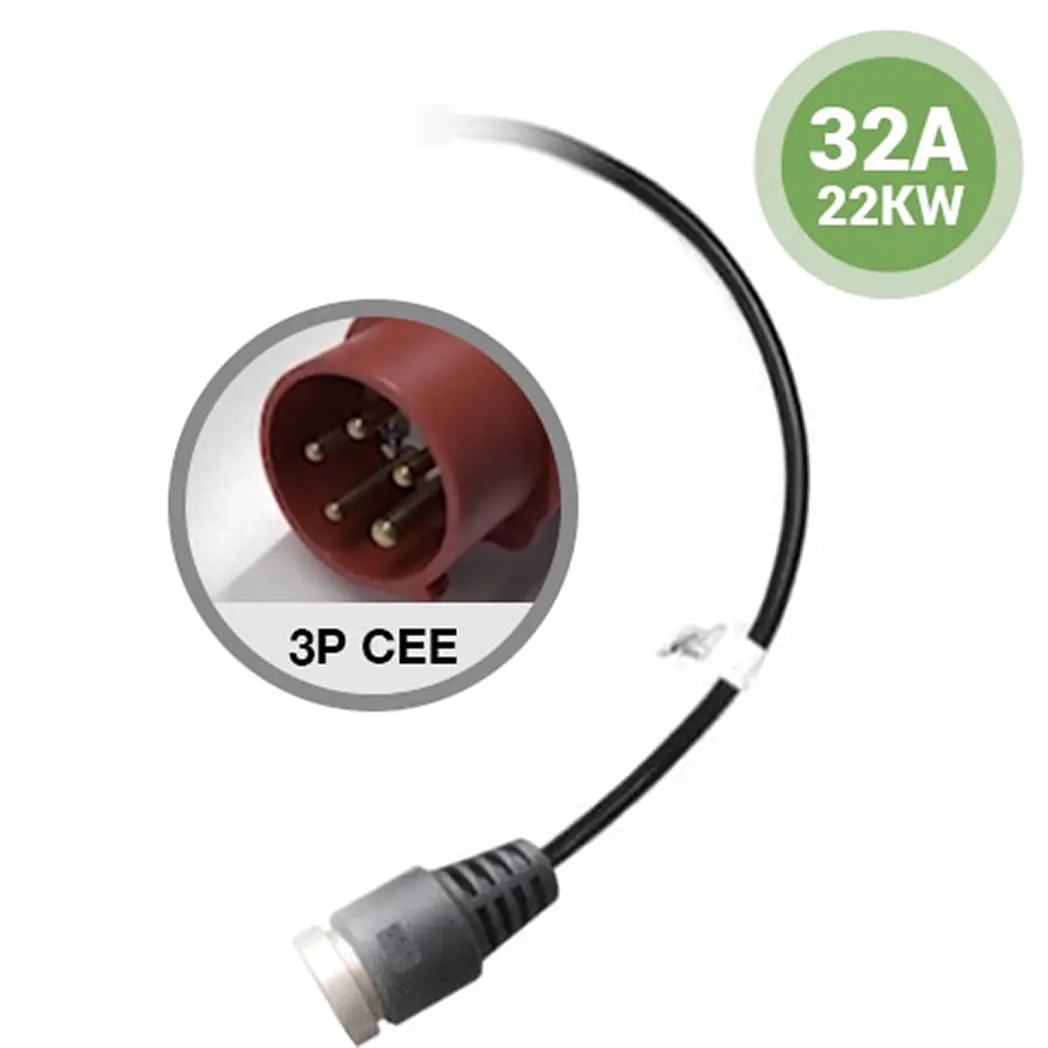

3 Phase 32A CEE (Commando) 5 pin socket

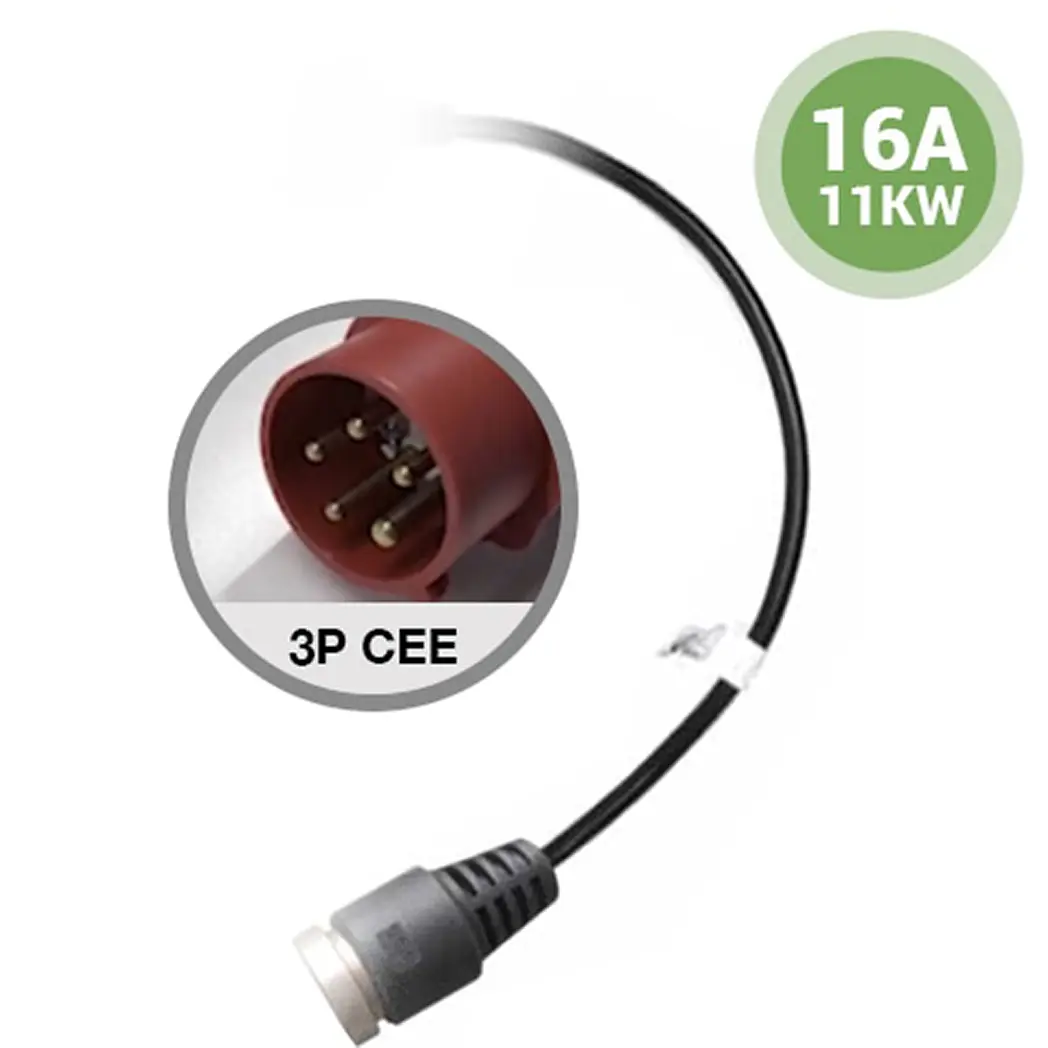

3 Phase 16A CEE (Commando) 5 pin socket

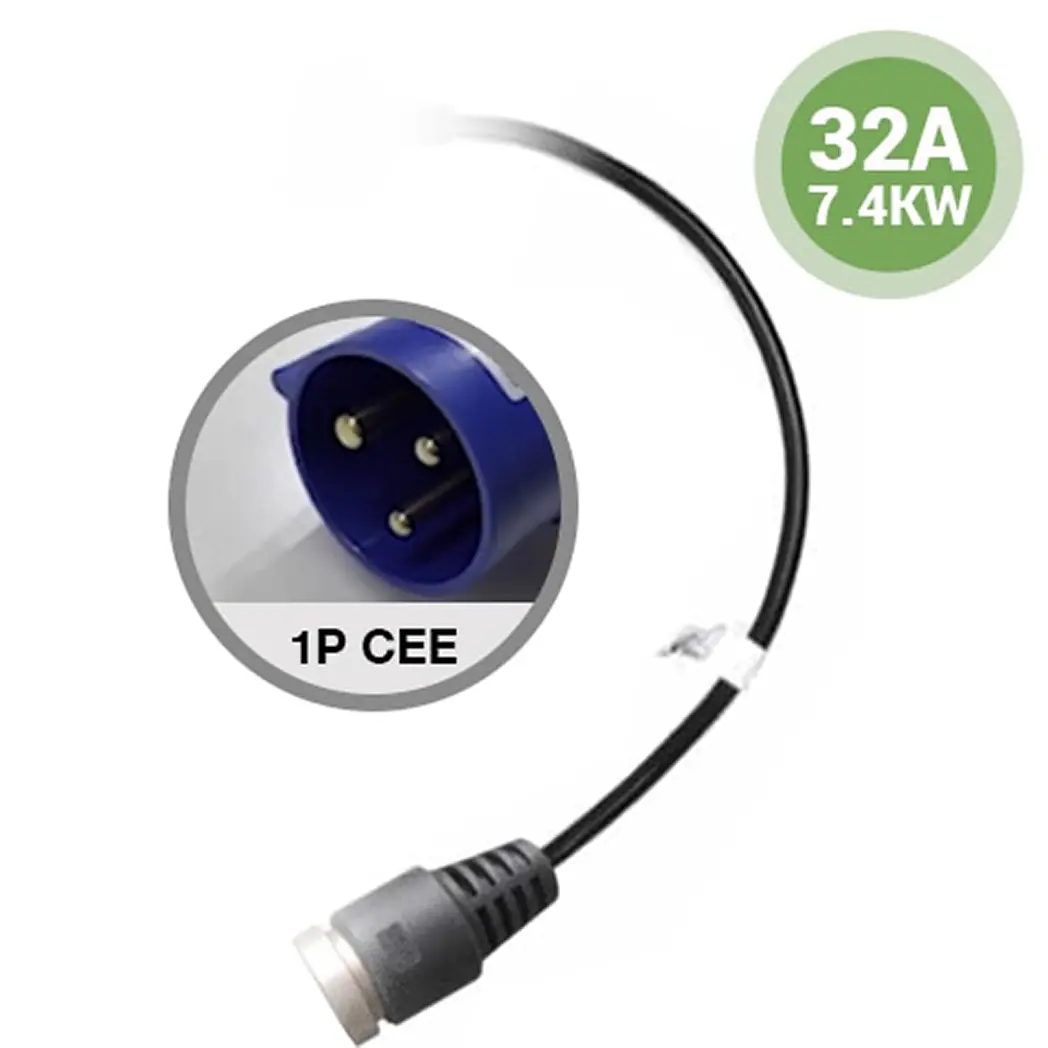

1 Phase 32A CEE (Commando) 3 pin socket
1 Phase 16A CEE (Commando) 3 pin socket

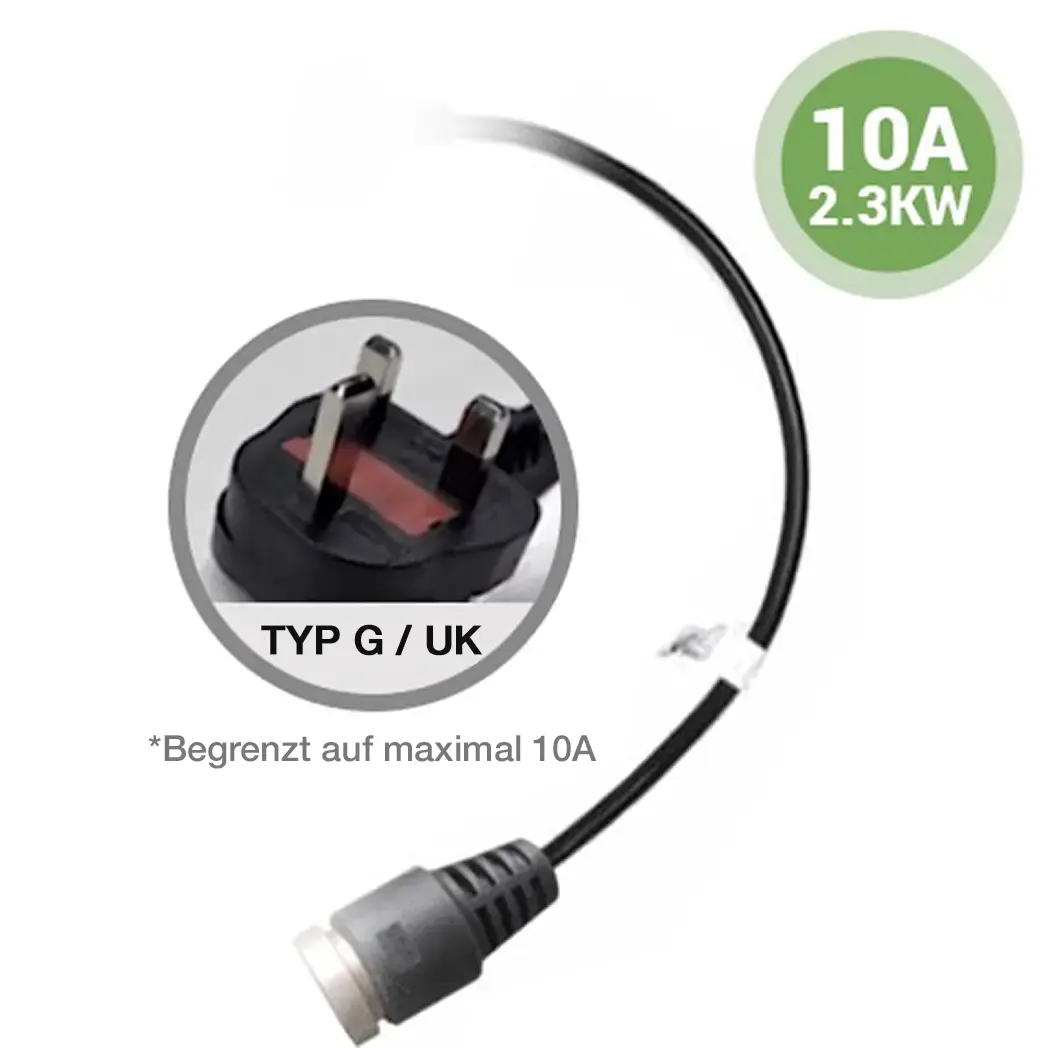

13A UK 3 pin socket

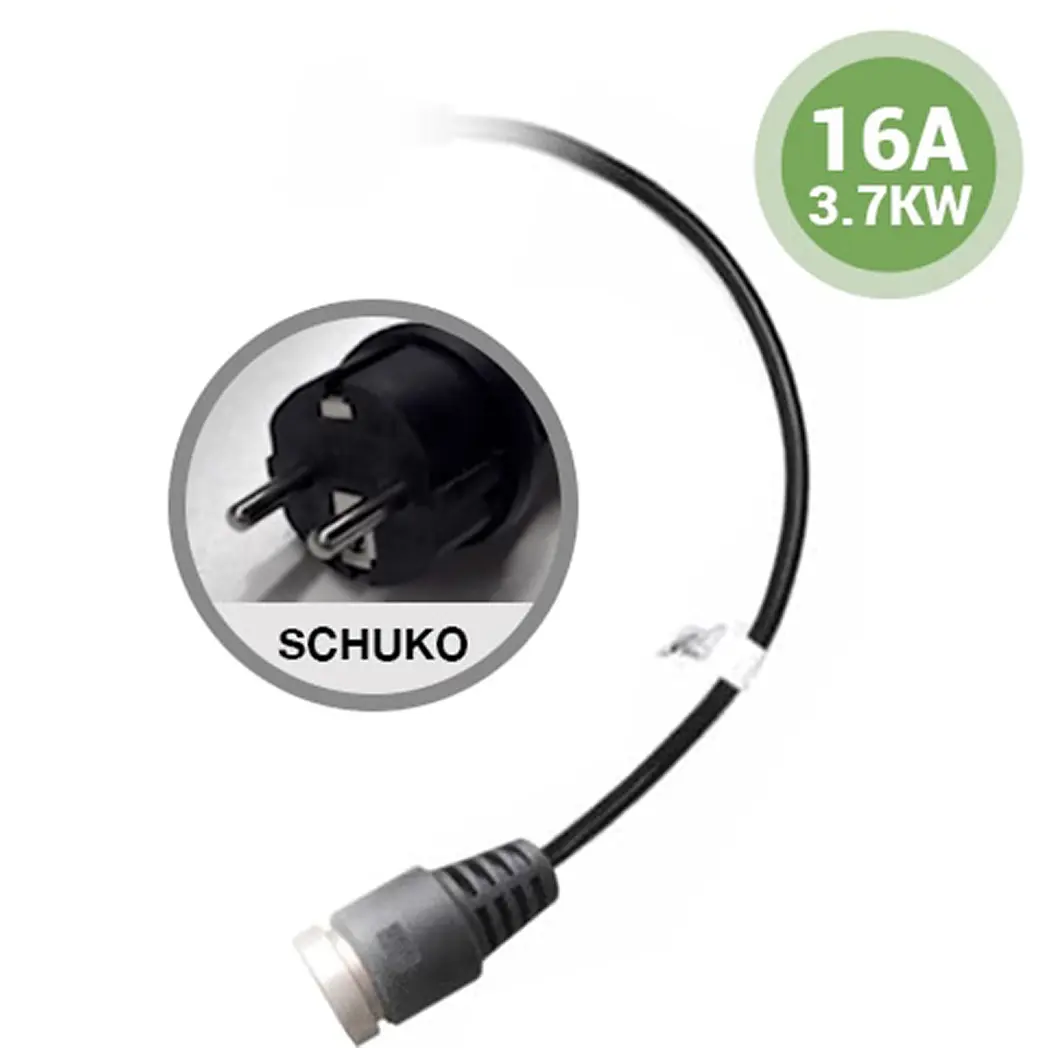

16A Euro 2 pin socket

Regardless of whether the power socket supplies more current than the Renault EV can accept, it is the vehicle that determines the maximum current it draws from the mobile charger. This charger will therefore only provide up to the maximum charging capacity that the vehicle can handle.

The multi-adapter charger offers variable current. Your vehicle can be charged at 1 Phase or 3 Phase power with options of 6A, 8A, 10A, 16A, 20A, 24A, or 32A. This universal multi-adapter charger is therefore compatible with (solar panel, Photovoltaic) PV Systems. The device also retains the chosen setting for subsequent charges.

Is This The Right Charger For My Vehicle?

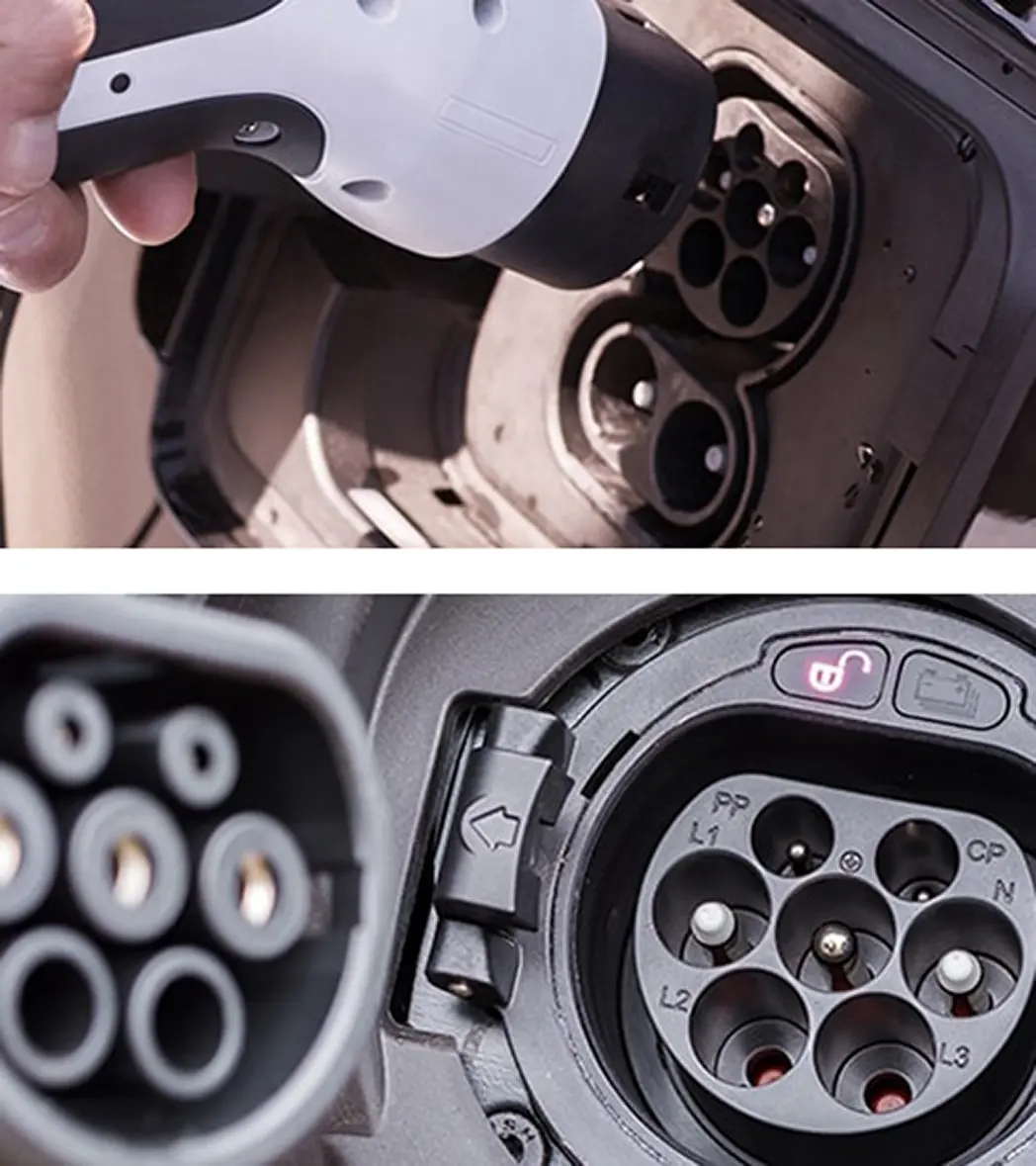

The Renault EV has a Type 2 socket as standard, thus ensuring compatibility with this multi socket charger. Please note that the manufacturer of this vehicle did not manufacture this charging cable.

Ensure that the power socket used to charge your vehicle has been certified for charging an electric vehicle by a qualified electrician.

Please also check the information at the top of this page, “Please Read Before You Buy”, to help avoid the most common reasons for returning a charging cable.

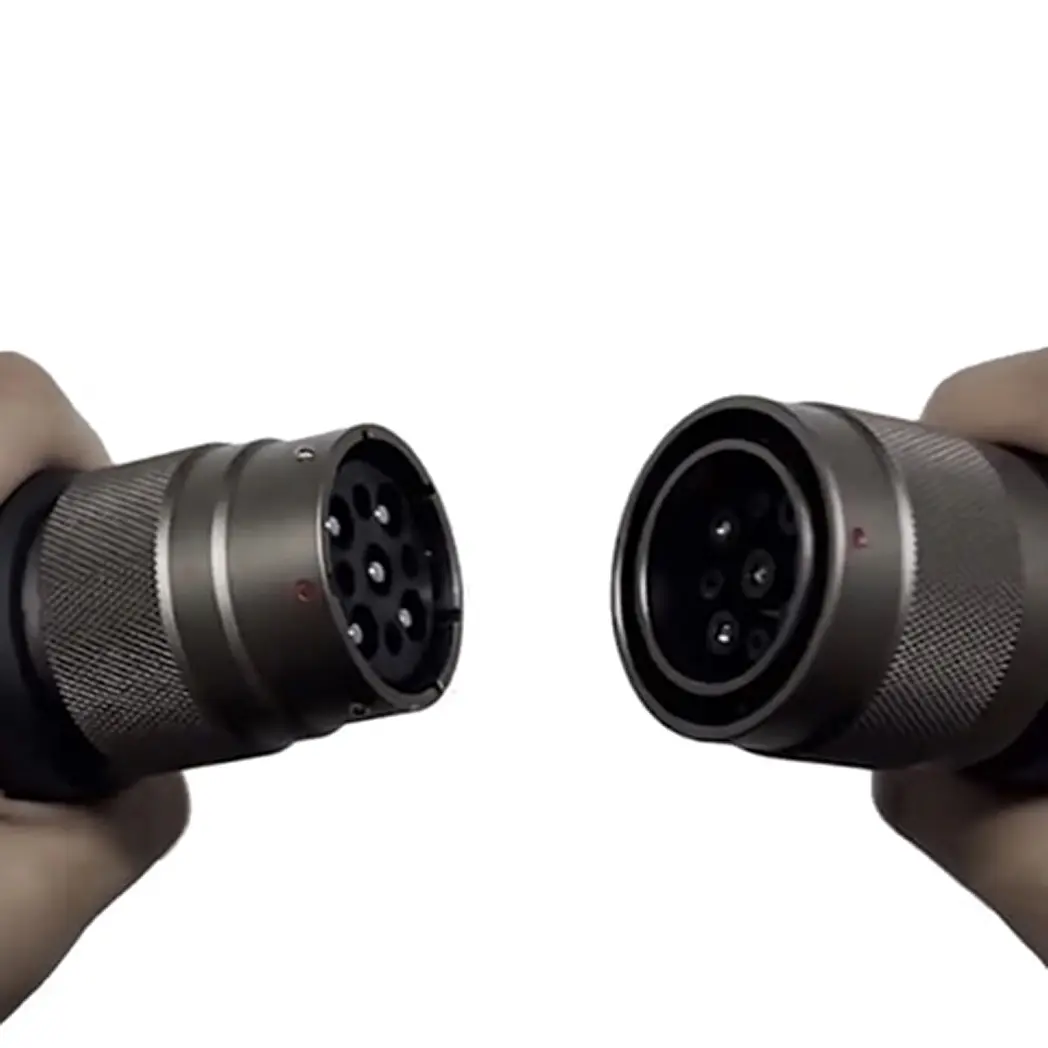

Multi Adapters

The adapters that are available for this multi socket charger allows the Renault vehicle to be charged from all 5 pin and 3 pin 32A and 16A CEE sockets. There are also adapters for charging the vehicle with a 3 pin 13A UK (Type G) socket and 2 pin 16A Euro (Type F) socket. The charger will detect the voltage of the power supply so it will auto switch to 1 Phase or 3 Phase power.

This universal charger connects your EV to the most common AC power supplies in Europe. Therefore, you can charge your Renault using a hookup at holiday parks, campsites or caravan parks. Or, charge your EV at a marina, workplace, or on holiday in Europe.

When using this 32A charger with the adapter / power outlets displayed in the table below, the charger will provide the following maximum currents:

Please note that the multi-adapter charger can only be set to 10A when using the 13A mains plug. The Schuko adapter is only to be used with the 2 pin Euro Type F, E or C socket.

The maximum current displayed in the above table will not necessarily be the current that the EV / PHEV will accept. That is, the vehicle will only accept up to the maximum AC current of its onboard charger.
